Suspension & Towing Features

- Hot dip Galvanized Steel chassis and drawbar 100 x 50 x 3mm to ensure rigid strength without being too heavy.

- Aluminium checker plate lids and covers with heat treated body panels to ensure your trailer will stay rust proof for many years.

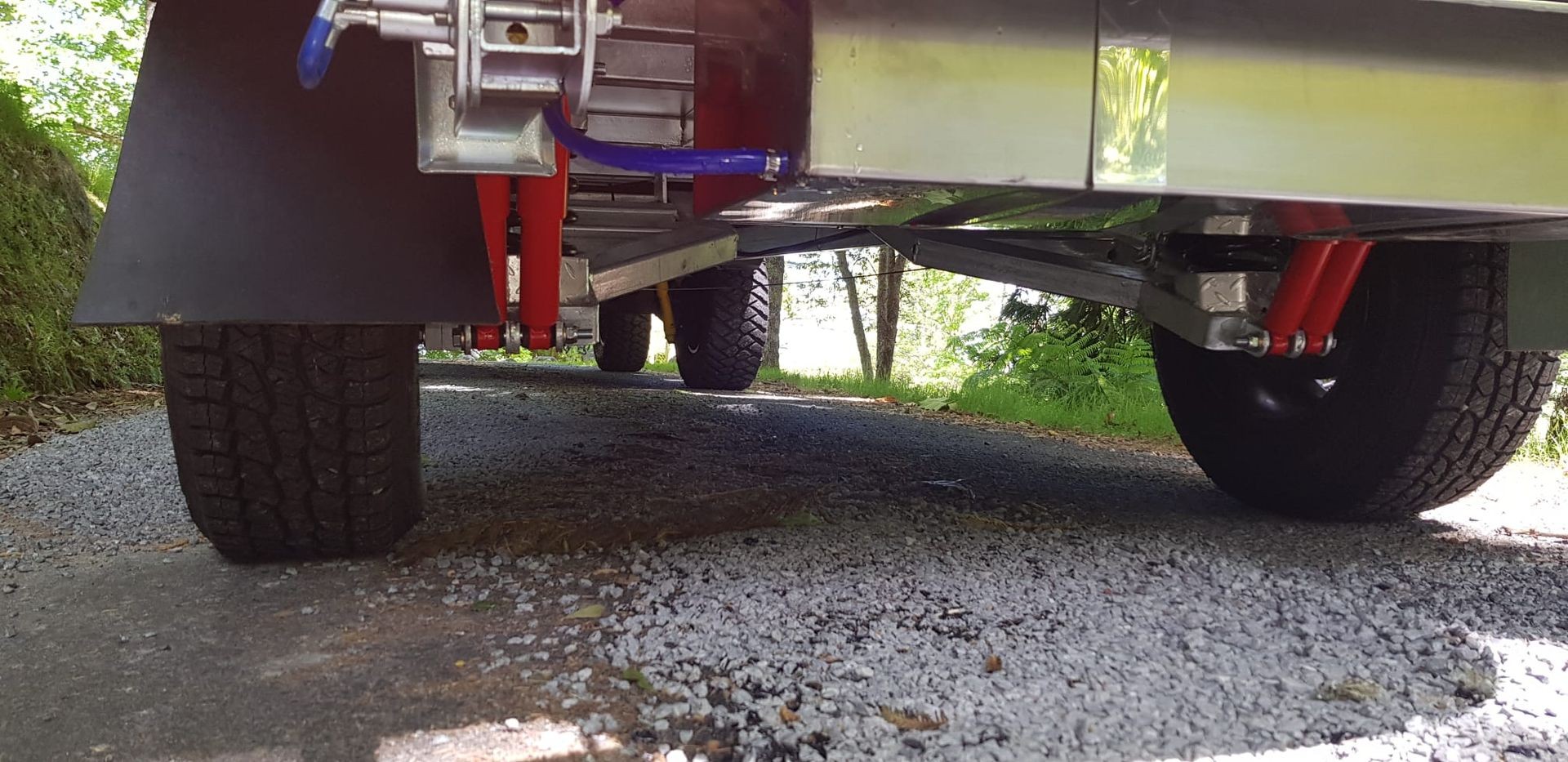

- Extra long suspension travel, improving the ride quality and  4x4 ability on our independent suspension arms.

- Heavy duty Coil Springs with twin shocks on a side enhancing towing stability and the the 4x4 capabilities.

- Aussie standard 4x4 hitch allowing additional vertical travel and safe towing.

- 2 x 16" Chrome Alloy wheels with 5 studs and a 3rd full Alloy rim mounted at the back as a sparewheel.

- 235/70R16 All terrain Tyres fitted to all 3 rims

- 10" Electric Brakes providing ample support to keep your trailer safe on all the windy and steep roads. A fully functional Handbrake with button release is also included.

- Heavy duty jockey wheel with fold-away operation.

- Adjustable Drop-Down Stabiliser Legs for stability while accommodation is in use.

- Frame with net as stone protection

- Trailer Tare weight = 990kg

- Trailer ATM weight = 1600kg

- Towball weight: 140 - 210kgs depending on gas and storage area load.

- Dimensions Closed: 5025(L) x 1800(W) x 1320(H) mm
  Dimensions Open: 5025(L) x1800(W) x 2275(H) mm

- We have also ensured that the towbar height is on a relative straight level with most bigger SUV vehicles to reduce custom fitment requirements.

The Living Spaces:

- Custom and fast tent deployment, taking under 5 minutes for main trailer tent and possible to be erected by a single person. Closing-up takes about double the time if only one person is involved.

- Lighweight, yet durable aluminium poles used throughout the trailer and tents.

- Top quality 14oz finely woven Rip-stop canvas utilized throughout the trailer and annex structures.

- Mesh-screens on all windows and doors to keep you safe from the midges, mozzies and flies that tag along like uninvited family.

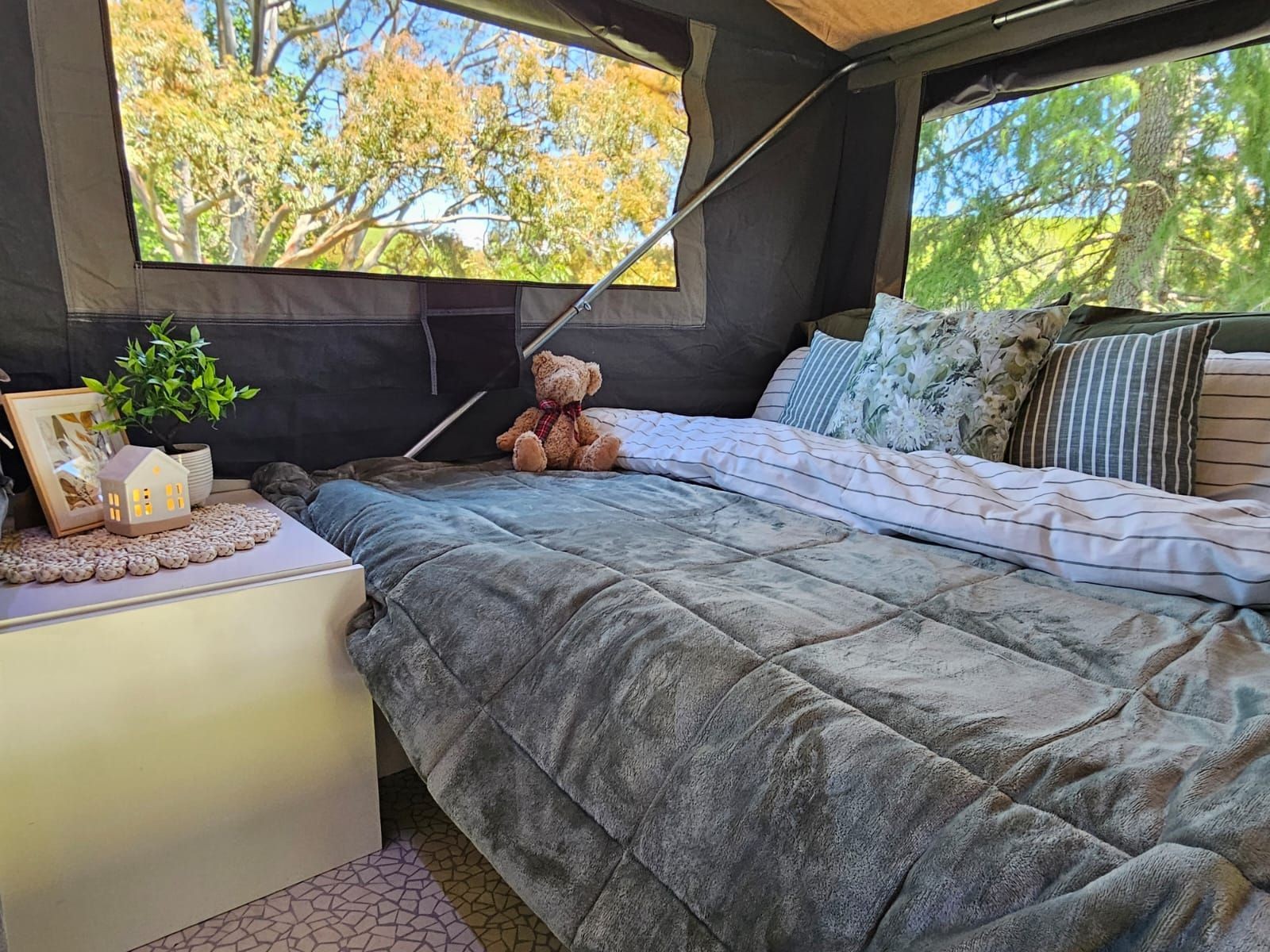

- Main bedroom has a 100mm Queen size mattress that gives great support for a great night's rest.

- The dining surround table with bunk seats fill room number two during the day and at night it becomes a highly comfortable bed for the kids measuring up to 1.75m in length.

- Build-in cupboard like box housing the toilet, allowing for the ability to become a permanent fixture when the law might require that (PS - toilet not included in the trailer standard pricing)

- Storage spaces below bunk surround cushions

- Led Strip light on the roof with switch

- USB and 12V sockets

- Zip-on and Velcro Annex Tent with roof and 3 sides plus Trailer covers and a full floor cover: Size 4.4 x 2.2 x 2.75m









Kitchen and Equipment

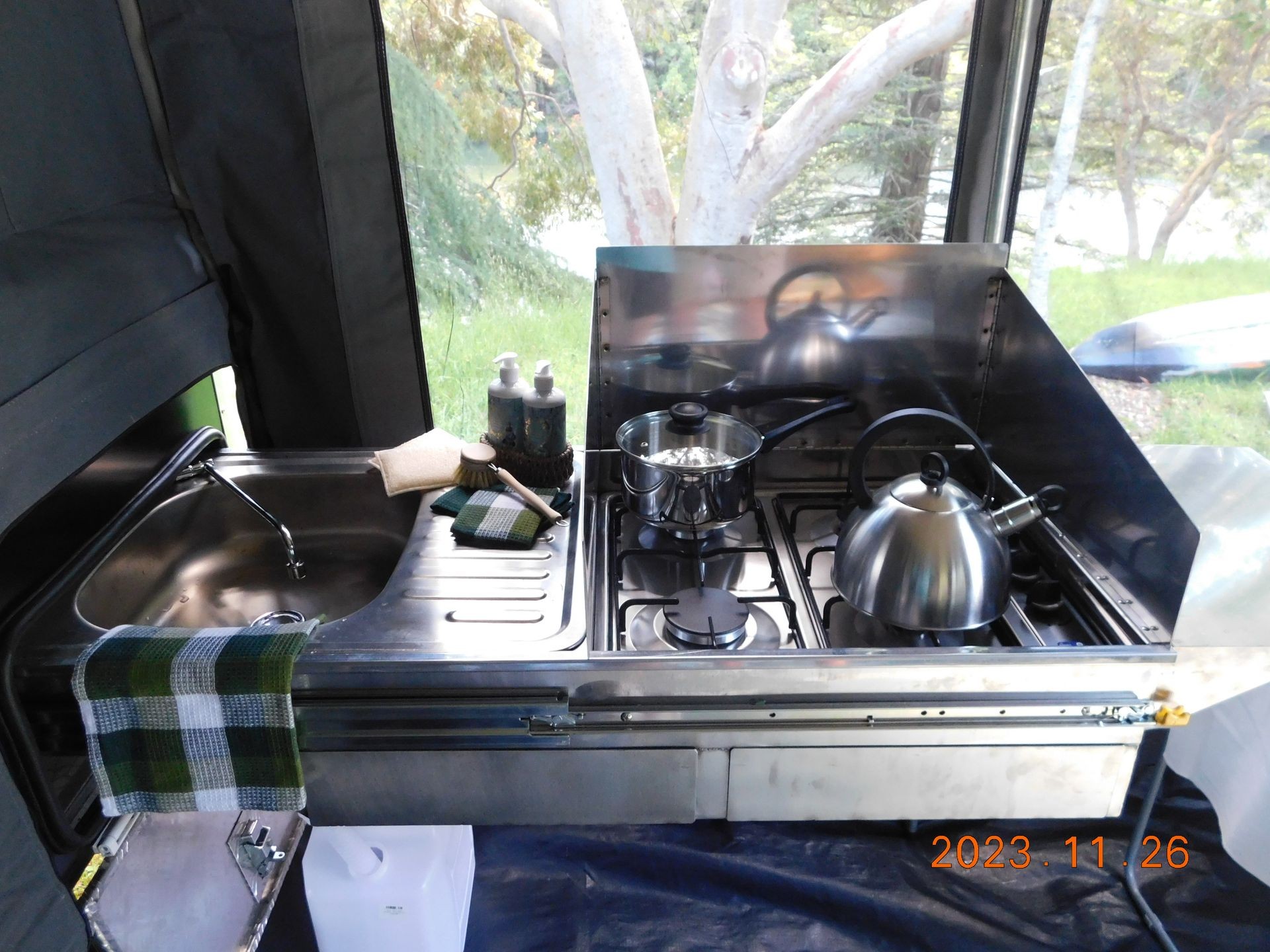

- Stainless Steel Slide out kitchen, with

   Basin and Tap with ressurized water from fresh water tenk

   4 x Burner Aga Gas Stove with wind protection

   Utility / cutting board or prep unit

   2 slide out drawers for utensils

- 50 litre Stainless Steel Fresh water tenk mounted to trailer with electric pump unit

- Plus additional portable 50 litre Stainless Steel tenk with wheels and handles as an optional for fresh water or grey water.

- An added 20 litre Small portable steel tenk that could function as either a grey water tenk or a future balck water tenk

- 2 x Jerry Can holders on either side of the spare wheel.

- Storage spots for 2 x 9kg Gas Bottles.

- Fridge / freezer with 60 litre capacity - Temp setting between 6 and -18 degrees

- Large storage areas around Fridge slider.

- 100AH Deep cycle Battery with small switch board and circuit breaker.

- 240V Battery charger

- Anderson Plug with wiring (No DC to DC charger)
